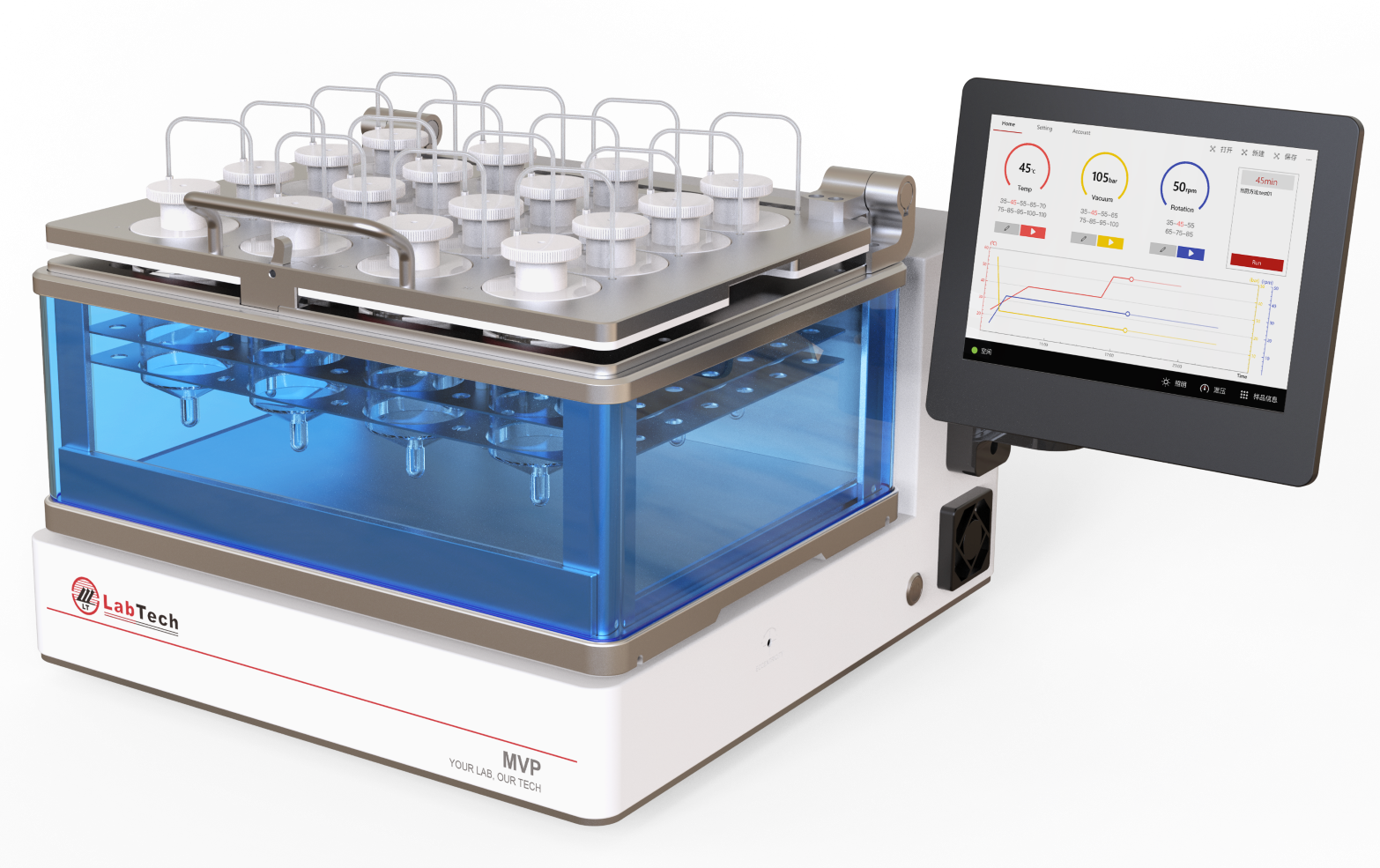

LabTech Flex-MVP Automatic Parallel Vacuum Concentrator-LabTech

Key Features

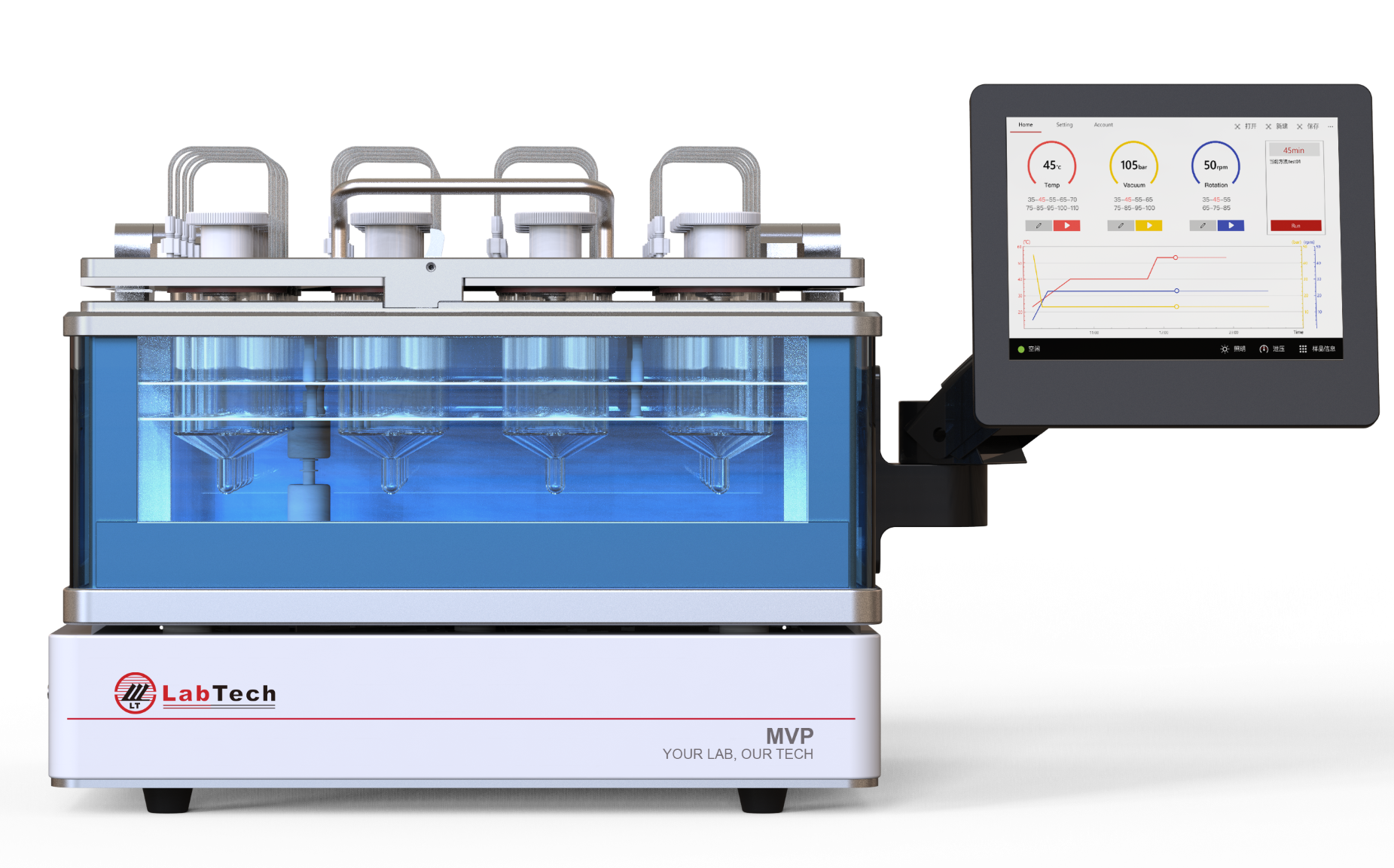

The Flex-MVP Automatic Parallel Vacuum Concentrator independently controls each sample, allowing flexible handling, high concentration efficiency, user-friendly operation, and environmentally friendly performance.

Batch capacity: 16 positions, compatible with 200 mL, 50 mL, 40 mL, and other flask sizes.

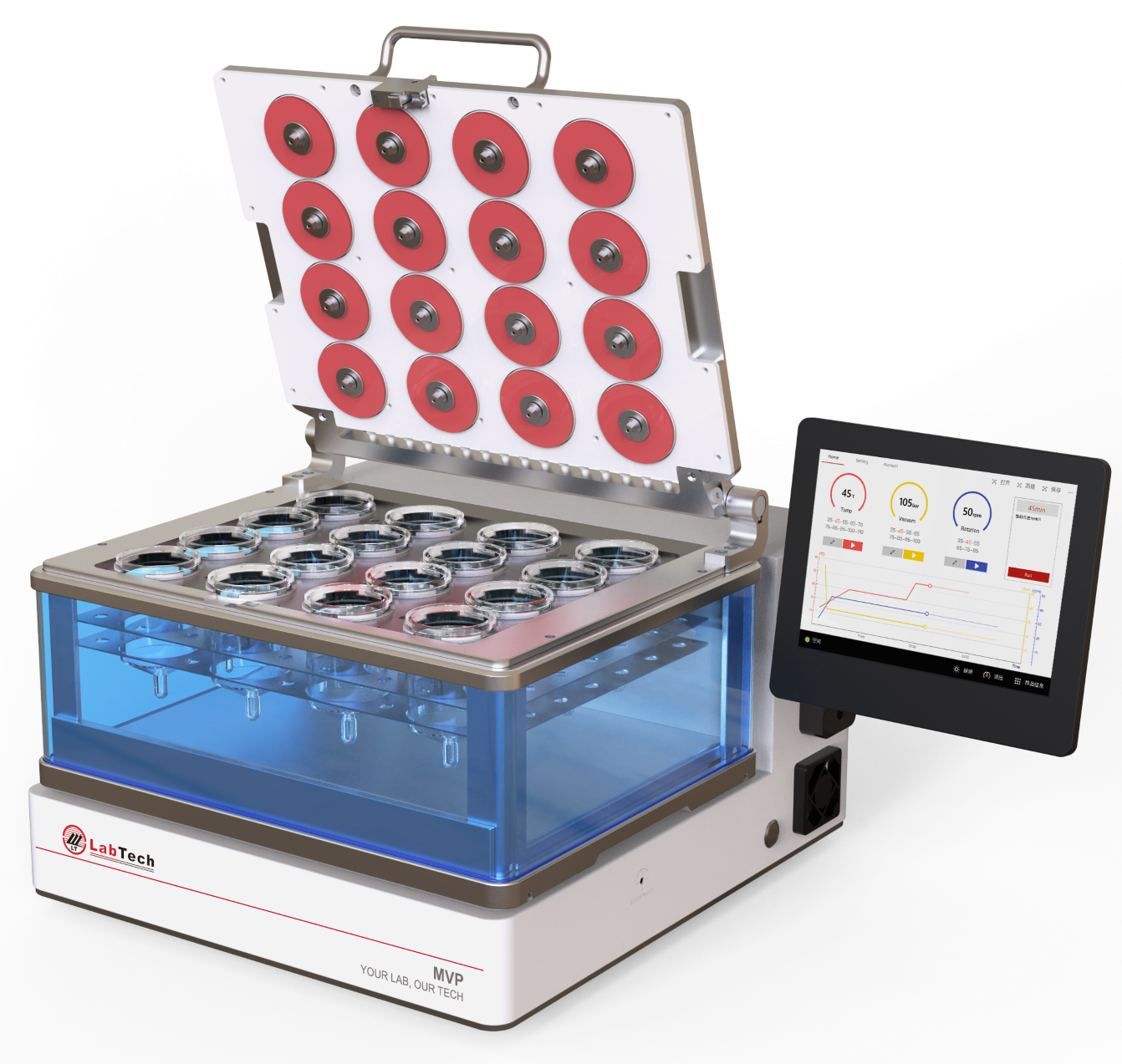

Flexible handling: Combined overall and independent sealing design allows addition or removal of individual samples without pausing the instrument or releasing chamber pressure.
Independent tubing: Each flask has a separate sealed line and independent exhaust, preventing cross-sample liquid transfer due to bumping, avoiding contamination and backflow.
Easy observation: Fully transparent concentration chamber; flasks are suspended, and LED lighting allows monitoring of the sample bottom during operation.
Dual solvent and exhaust recovery: Dual-condensation tower design enables recovery of both solvent vapors and exhaust, ensuring environmental friendliness.
Touchscreen control: 10-inch touchscreen computer system.
User-friendly operation: Software allows real-time adjustment of temperature, vacuum, and shaking frequency; supports timed operations; graphical display of gradient curves; real-time monitoring of all parameters.

Environmental

Used for concentration and enrichment of semi-volatile organic compounds in soil, solid waste, air, and water samples.

HJ 834-2017 Determination of semi-volatile organic compounds in soils and sediments — Mass spectrometry

HJ 805-2016 Determination of polycyclic aromatic hydrocarbons in soils and sediments — GC-MS

HJ 743-2015 Determination of PCBs in soils and sediments — GC-MS

HJ 1023-2019 Determination of 47 organophosphorus and pyrethroid pesticides in soils and sediments — GC-MS

HJ 77.4-2008 Determination of dioxins in soils and sediments — Isotope dilution high-resolution GC-HRMS

HJ 697-2014 Determination of acrylamide in water — GC

HJ 478-2009 Determination of polycyclic aromatic hydrocarbons in water — LLE/SPE-HPLC

HJ 646-2013 Determination of polycyclic aromatic hydrocarbons in air and exhaust — GC-MS

HJ 956-2018 Determination of benzo[a]pyrene in ambient air — HPLC

HJ 77.2-2008 Determination of dioxins in air and exhaust — Isotope dilution high-resolution GC-HRMS

HJ 782-2016 Extraction of organics from solid waste — Pressurized fluid extraction

Food & Beverage

Used for enrichment and concentration of pesticide residues, veterinary drug residues, and organic extracts in food, grain, oil, and agricultural products.

GB 23200.8-2016 Determination of 500 pesticide residues in fruits and vegetables — GC-MS

GB 23200.112-2018 Determination of 9 carbamate pesticides and metabolites in plant-based foods — LC-post-column derivatization

GB/T 5009.19-2008 Determination of multicomponent residues of organochlorine pesticides in foods

GB 31658.5-2021 Determination of florfenicol and florfenicol amine residues in animal foods — LC-MS/MS

GB/T 20770-2008 Determination of 486 pesticide residues and related chemicals in cereals — LC-MS/MS

GB 23200.113-2018 Determination of 208 pesticide residues and metabolites in plant-based foods — GC-MS/MS

GB/T 23376-2009 Determination of multiple pesticide residues in tea — GC-MS

Pharmaceutical & Medical

Used for enrichment and concentration of pesticide residues, mycotoxins, and other organic compounds in traditional Chinese medicine samples.

Chinese Pharmacopoeia 2020, Part IV: General Chapters 2341 (Pesticide Residue Determination) and 2351 (Mycotoxin Determination)

Disease Control

Used for enrichment and concentration of pesticide residues, veterinary drug residues, and semi-volatile organics in food, agricultural products, and drinking water.

GB 31658.5-2021 Determination of florfenicol and florfenicol amine residues in animal foods — LC-MS/MS

GB 23200.112-2018 Determination of 9 carbamate pesticides and metabolites in plant-based foods — LC-post-column derivatization

GB/T 5009.19-2008 Determination of multicomponent residues of organochlorine pesticides in foods

GB/T 20770-2008 Determination of 486 pesticide residues and related chemicals in cereals — LC-MS/MS

GB 23200.113-2018 Determination of 208 pesticide residues and metabolites in plant-based foods — GC-MS/MS

Geology & Mining

Used for enrichment and concentration of semi-volatile organic pollutants in soil, solid waste, air, and water samples.

HJ 834-2017 Determination of semi-volatile organic compounds in soils and sediments — Mass spectrometry

HJ 805-2016 Determination of polycyclic aromatic hydrocarbons in soils and sediments — GC-MS

HJ 743-2015 Determination of PCBs in soils and sediments — GC-MS

HJ 1023-2019 Determination of 47 organophosphorus and pyrethroid pesticides in soils and sediments — GC-MS

HJ 77.4-2008 Determination of dioxins in soils and sediments — Isotope dilution high-resolution GC-HRMS

HJ 697-2014 Determination of acrylamide in water — GC

HJ 478-2009 Determination of polycyclic aromatic hydrocarbons in water — LLE/SPE-HPLC

HJ 646-2013 Determination of polycyclic aromatic hydrocarbons in air and exhaust — GC-MS

HJ 956-2018 Determination of benzo[a]pyrene in ambient air — HPLC

HJ 77.2-2008 Determination of dioxins in air and exhaust — Isotope dilution high-resolution GC-HRMS

HJ 782-2016 Extraction of organics from solid waste — Pressurized fluid extraction

Forensics

Used for enrichment and concentration of drugs and organic pollutants in blood, urine, wastewater, and other biological or environmental samples.
